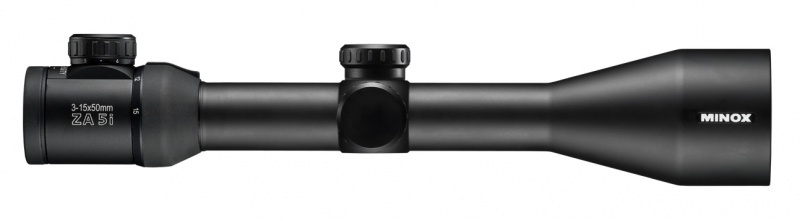

ZA-i HD riflescopes with illuminated reticle

Adding even more accuracy and visibility in low-light situations, the new MINOX ZA-i HD riflescopes series also features a selection of models with an illuminated reticle. All five scopes are now ideal for hunting in dusk and offer the marksman a higher concentration and certainty at the decisive moment. All five ZA-i HD riflescopes come with 30 mm tubes.

Features:

• High performance German HD optics
• 30 mm aluminum tube
• Fully illuminated tactical reticle system
• Varying illumination intensity settings
• Off step between each intensity setting
• Anodized scope body
• 5x zoom range
• Long, safe eye relief
• Large field of view
• Reticle at the 2nd focal plane
• Parallax adjustment (SF models)
• Waterproof
• Filled with Argon gas

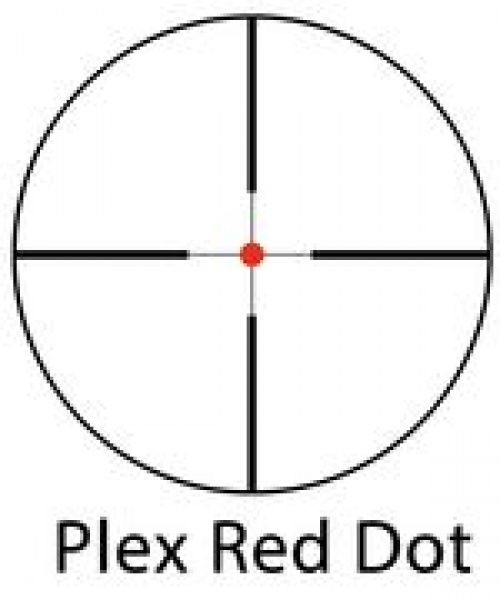

5i HD 3-15x50 SFZA 5i HD 3-15x56 SFZA 5i HD 5-25x56 SFObjective LensClear aperture (mm)505656 Parallax adjustment range (Side Focus)50 yds. - ∞50 yds. - ∞50 yds. - ∞ Fully multicoatedYesYesYesEyepieceEye relief (mm)101101101 Exit pupil high power (mm)3.33.32.2 Exit pupil low power (mm)15.015.010.0 Eyepiece -diopter (min)222 Eyepiece +diopter (max)222Power SelectorMagnification high power151525 Magnification low power335ImageField of view low power / ft. at 100 yds.32.532.519.5 Field of view high power / ft. at 100 yds.6.56.53.9Windage / ElevationReticle adjustment per click at 100 yds.0.25"0.25"0.25" Windage travel - total≥ 60 MOA≥ 60 MOA≥ 50 MOA Elevation travel - total≥ 60 MOA≥ 60 MOA≥ 50 MOAMechanicalMain tube outside diameter30 mm30 mm30 mm Overall length (inch)12.8812.9815.0 Front mounting distance (inch)2.102.122.93 Rear mounting distance (inch)2.272.272.27 Weight (oz.)20.822.222.2Order NumberPLEX red dot664466645566476

Design, features, supply and price are subject to change.


Minox Limited warranty,no returns for optics except for warranty issues.
